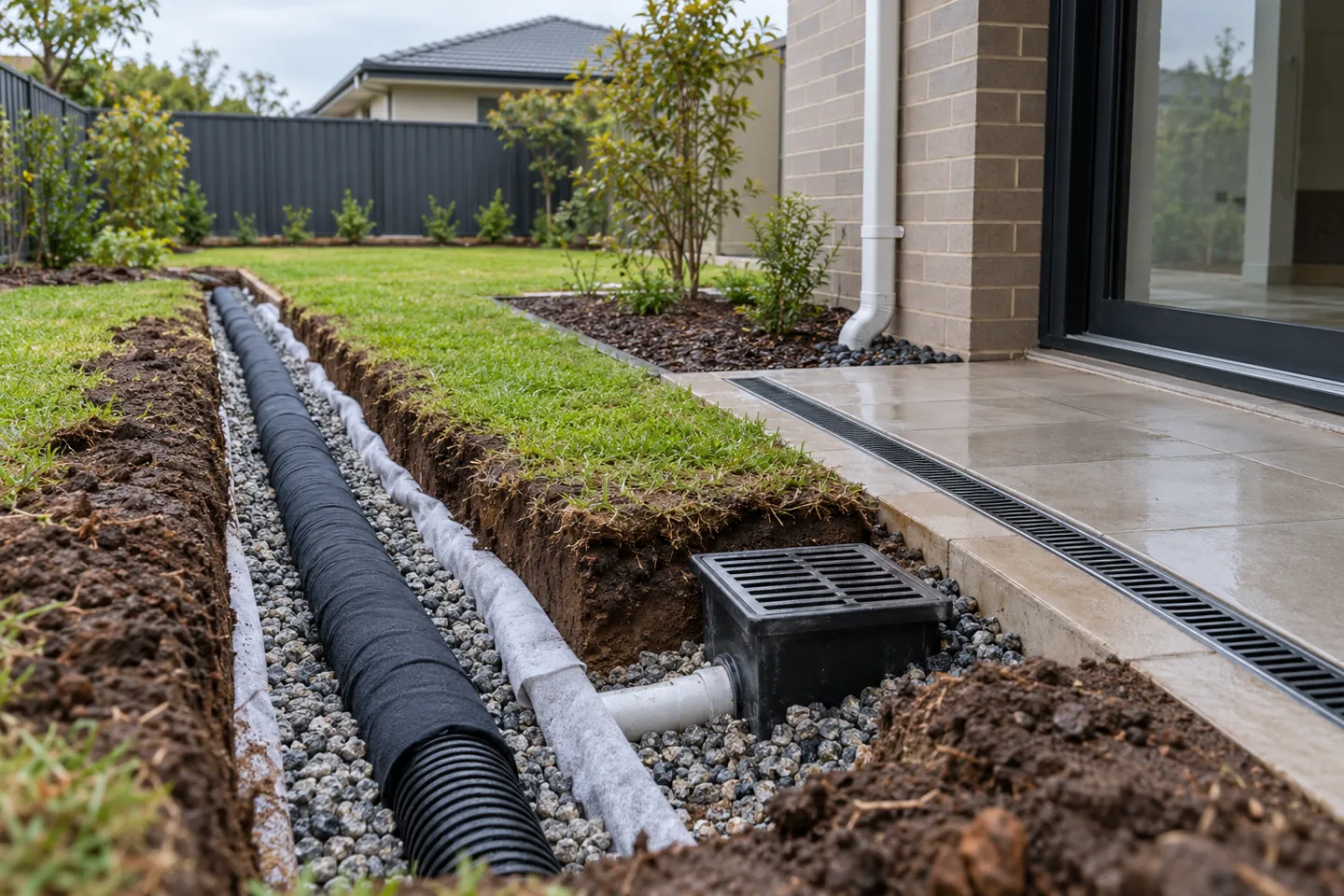

AI editorial concept of an Australian backyard drainage scope with an open aggregate trench, socked ag pipe, stormwater pit and channel drain beside paving

How much does garden drainage cost?

There is no responsible installed price for every Australian garden drainage problem. Current retail examples checked on 30 October 2026 include a one-metre polymer channel and grate at A$27.15, a 20-metre coil of 100 mm socked slotted Draincoil at A$120, a shallow stormwater pit case at A$28.85 and a six-metre length of 90 mm solid stormwater pipe at A$30.98, all GST inclusive. These are named supply-only components, not installed metre rates, package totals, national averages or RealScape estimates.

A complete quote may also need diagnosis after rain, levels or survey information, catchment and capacity decisions, a lawful outlet, fittings, aggregate and geotextile, excavation, service locating, licensed plumbing, testing, spoil removal and reinstatement. No current primary source was found with enough consistent scope to compare complete residential garden drainage installations across Australian sites. The project price must come from appropriately qualified professionals assessing the same property and brief.

Diagnose the water before choosing a product

Photograph where water starts, travels and remains during and after rain. Record roof downpipes, paving falls, low lawn areas, irrigation, taps, retaining walls, garden beds, neighbouring runoff and any recent construction. Surface water, roof stormwater, groundwater, a leaking service and an overflowing system need different investigations. A visible puddle does not prove that an ag pipe is the right first purchase.

Ask the contractor to state the evidence and assumptions behind the proposed measure. Useful inputs can include spot levels, the site's existing drainage information, the legal point of discharge, pipe inspections or tests and observations during wet conditions. If the cause is uncertain, price the investigation separately from construction so every quote is not based on a different guess.

Compare channel drains, pits, solid pipe and subsoil drains

A channel drain intercepts surface water across a defined edge such as a paved threshold. A pit collects water at a low point and provides access around connected pipework. Solid stormwater pipe conveys collected water toward a lawful outlet. A slotted subsoil drain collects water within the ground when the surrounding aggregate, filter and site conditions allow it. These parts can work together, but they are not interchangeable and the cheapest visible component does not establish system capacity or destination.

Specify the product and location in each quote: channel length and load class, pit dimensions and grate, pipe type and diameter, filter sock or geotextile, clean aggregate, fittings, access points and surface finish. Ask how debris will be removed and how the system can be inspected later. A line item that says only 'install drainage' cannot be compared like for like.

Confirm levels, outlet and overflow path

Water needs a designed path. Ask who confirms the existing and proposed levels, pipe falls, invert levels, catchment, capacity and overflow route. The legal point of discharge is property- and authority-specific; it is not inferred from the nearest kerb, boundary or existing puddle. Surface grading should also avoid directing water toward the house, neighbouring land or a retaining interface.

If the proposal connects below-ground stormwater pipe to the point of discharge, Victoria's Building and Plumbing Commission defines that work as regulated drainage work. Its class definition separately excludes a subsoil drain used only for collecting subsoil water, stormwater pits, grated channels and trench excavation. That distinction does not make a whole landscaping package unregulated: identify each task and the practitioner responsible. Other states and territories use their own rules.

Price excavation, underground services and access

The trench can cost more than the pipe. Give every business the same information about side access, fences, steps, decks, concrete, pavers, roots, rock, reactive or wet soil, retaining structures and machinery limits. The quote should identify route, measured length, width and depth; hand or machine excavation; temporary protection; spoil; imported aggregate; bedding; and whether trenches need special support or staged backfilling.

Before You Dig Australia recommends a free enquiry before landscaping or other excavation, but its plans are indicative and may not show the exact location or every private service. Decide who lodges the enquiry, reviews all responses and arranges skilled locating or careful exposure where required. Record service protection, damage responsibility and what happens if the proposed route must change.

Separate materials from reinstatement

The named A$120 pipe coil is not a 20-metre installed-drain price. It omits aggregate, filter details, fittings, outlet work, trenching, spoil and the surface that must be rebuilt. Likewise, the A$28.85 pit case needs the selected grate and connection arrangement. Ask for measured quantities and product codes so a lower quote cannot silently substitute a smaller pipe, lighter grate or incomplete pit.

Price reinstatement as real work: compacted soil, lawn, garden beds, irrigation, edging, gravel, pavers, concrete, fence panels and final cleaning. State whether replacement materials must match existing finishes and who is responsible for settlement, sunken trench lines or failed planting later. If the surface cannot be matched exactly, the quote should say so before acceptance.

Require testing, records and maintenance access

Ask how levels and connections will be checked before backfilling and what commissioning evidence will be supplied. Depending on the scope, this can include photos of the open trench and fittings, recorded levels, a flow or hose test, confirmation that pits and channels are accessible and an as-built route. A dry-day demonstration cannot prove performance in every storm, so keep design assumptions and stated limitations with the handover documents.

Agree how grates, pits, leaf baskets, outlets and inspection points will be cleaned. Keep planting roots, mulch and later paving away from access points. Record product and workmanship warranties and the response to blockage, settlement, erosion or continued pooling. Maintenance access is part of the design, not an optional extra after everything is buried.

Compare drainage quotes on one complete brief

Issue the same photos, levels, known services, water symptoms, outlet information, access limits and reinstatement standard to every business. Compare diagnosis, products, quantities, regulated trades, excavation, disposal, testing and warranty before comparing the total. A written quote should state GST, fixed items, allowances, exclusions, dates, payment terms, expiry and the process for written variations.

RealScape can help a homeowner explore a garden direction from a permitted photo and carry that direction into a free quote request. The concept is not a measured drainage plan, hydraulic calculation, approval or construction price. Suitable businesses decide whether to respond, matching is currently at state level and RealScape does not guarantee the lowest price or a contractor response. Actual drainage and landscaping quotes come from professionals after they assess the property.

AI-generated editorial concept showing possible garden drainage scope. It is not a completed customer project, measured drainage design, compliant connection detail or construction estimate.

Garden drainage quote checklist

The same address, site plan and dated photos issued to every business, including pooling after rain, damp areas, erosion, paving falls, downpipes, retaining walls, boundaries and any recent landscaping changes
Existing and proposed levels, spot heights or survey information, the suspected water source, catchment areas and who will diagnose whether the issue is surface runoff, roof stormwater, subsoil water, a leak or another cause
The lawful outlet or point of discharge for the property, council or authority information obtained, existing pipe condition and capacity assumptions, and who designs and approves any regulated connection
The nominated system by location: surface grading, channel drain, pit, solid stormwater pipe, subsoil drain, swale or another measure, with product, size, class, filter, aggregate, access and maintenance details
Trench route, length, width and depth; hand or machine excavation; underground-service plans and locating; root, footing, fence, retaining-wall, driveway and paving interfaces; shoring or access constraints
Excavated material, imported drainage aggregate, geotextile, bedding, spoil classification, haulage, tip fees, site protection, temporary water control and final clean-up
Connections, fittings, inspection or cleaning access, falls, levels, overflow path, testing and commissioning evidence, plus an as-built route or photos before trenches are backfilled
Surface reinstatement by measured quantity and finish: soil, lawn, mulch, plants, edging, concrete, pavers, gravel, fence panels or irrigation disturbed by the work
Responsibility for licensed plumbing, engineering, surveying, council or water-authority information, permits, approvals and any plumbing compliance certificate required for the actual jurisdiction and scope
GST, delivery, fixed items, allowances, exclusions, start and completion windows, weather assumptions, product and workmanship warranties, quote expiry, payment terms and the written variation process

Sources and date checked

Bunnings — Everhard 1 m EasyDRAIN channel and grate - accessed 2026-10-30. Current retail price, dimensions, outlet compatibility and listed residential applications.
Bunnings — Vinidex 100 mm x 20 m socked slotted Draincoil - accessed 2026-10-30. Current retail price, coil length, slotted construction, filter sock and flexible-drainage description.
Bunnings — Everhard Series 300 shallow stormwater pit - accessed 2026-10-30. Current retail price, case dimensions and the need to select the grate and connection arrangement separately.
Bunnings — Holman 90 mm x 6 m PVC stormwater pipe - accessed 2026-10-30. Current retail price, length and stated stormwater applications.
Bunnings — Online and Special Order Terms of Sale - accessed 2026-10-30. Bunnings states that website prices are in Australian dollars and include GST; availability and delivery can vary.
Building and Plumbing Commission Victoria — Drainage work - accessed 2026-10-30. Current definition of below-ground stormwater drainage work to the point of discharge and the stated subsoil-drain, pit, grated-channel and excavation exclusions from that class definition.
Building and Plumbing Commission Victoria — Landscaping - accessed 2026-10-30. Current guidance about paving redirecting water and plumbing work when a drain connection is required.
Building and Plumbing Commission Victoria — Stormwater - accessed 2026-10-30. Current homeowner guidance on stormwater collection, treatment, approvals and licensed or registered plumbing work.
Before You Dig Australia — For homeowners - accessed 2026-10-30. National excavation guidance; member-network plans are indicative and may not contain every private-property service.
business.gov.au — Prepare quotes - accessed 2026-10-30. Australian Government guidance on clear scope, itemised costs, GST, dates, payment terms, expiry and variations.
